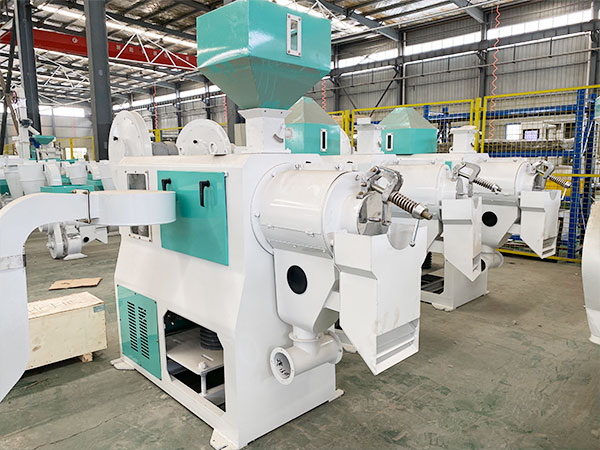

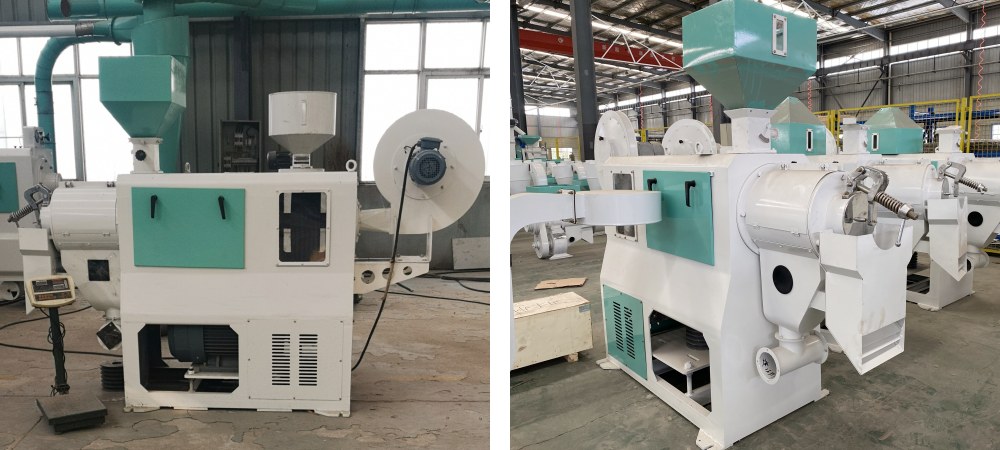

MPGT-17 Corn Maize Peeler and Degerminator Machine is used for corn hulling, degerminating and polishing, which is the most ideal equipment for medium and small corn processing plants to replace old machines.It can also be used in wheat peeling, paddy and sorghum peeling.

National Petent No. One Corn Polisher ZL 2010 2 0689495.0

Working Principle

MPGT-17 Corn Maize Peeler and Degerminator Machine mainly has corn peeling, wheat peeling and paddy peeling and polishing functions. After cleaning up, the unprocessed corn enters into the peeling chamber of corn peeler and polisher machine through feeding port. By control the feeding speed at the feeding port and the pressure of the pressure valve, we make the peeling chamber have some pressure. The machine squeezes, peels, degerminates, removes impurities and polishes the material between the rotary roller and the screen. And under the pneumatic effect, the corn kernels and the bran separate automatically and then we can get qualified corn kernels. The machine is internally installed efficient air suction chamber which can remove the skin and impurities from the peeling process.

Technology Advantage

1.Fine bran collector, sanitary and secure with low dust density;
2.No need to demount the spindle, easily operated and widely used;
3.It can remove corn skin, impurities and corn germs effectively and make the corn surface smooth and bright;
4.The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.

Finished Products

Technical Index

Model	Capacity(t/h)	Power(kw)	Rated voltage(v)	Weight(kg)	Dimension(mm)
MPGT-17	3-4	30-45	380	510	1630×1272×2435
MPGT-17×2	6-8	37×2+3	380	840	2563x1490x2204
